Connect GitHub

​

Overview

​

Prerequisites

• The ability to create and install apps for your GitHub organization. For example: the App-Manager role from GitHub’s pre-defined roles
• Access to your Relvy Kubernetes cluster
• kubectl configured to access your cluster
• Helm (for Relvy configuration updates)

​

Step 1: Create a GitHub App

1. Create a new GitHub app for your organization / enterprise
   • For GitHub Enterprise, this is usually via Settings > GitHub Apps
   • Your URL will look something like https://github.com/enterprises/YOUR-ENTERPRISE-SLUG/settings/app/new
   • For GitHub organizations, the URL will look something like https://github.com/organizations/YOUR-ORG-SLUG/settings/apps/new
2. Fill in the app details:
   • GitHub App name: Choose a descriptive name (e.g., “Relvy Code Analysis”)
   • Homepage URL: Your Relvy instance URL (e.g., https://relvy.yourcompany.com)
   • Callback URL: Leavy empty
   • Setup URL: https://YOUR-RELVY_DOMAIN/github/setup/redirect
     • Also check “Redirect on Update”
   • Webhook: Disable webhook (uncheck “Active”)
3. Set the following permissions:
   • Repository permissions:
     • Contents: Read-only (for reading source code)
     • Metadata: Read-only (for repository information)
4. Choose where the app can be installed:
   • Only enterprise organizations: Use this if you are on GitHub enterprise. This ensures that only organizations in your enterprise can install the app
   • Only on this account: For personal/organization repositories
   • Any account: If you need to install across multiple organizations
5. Click Create GitHub App

​

Step 2: Generate and Save Credentials

1. Note down the Client ID (you’ll need this for configuration)
2. Generate a Private Key:
   • Scroll down to the “Private keys” section
   • Click Generate a private key
   • A .pem file will be downloaded to your computer
   • Store this file securely

​

Step 3: Install the GitHub App

1. From your GitHub App settings page, click Install App
2. Select the account/organization where you want to install it
3. Choose which repositories to grant access to:
   • All repositories: Grant access to all current and future repositories
   • Only select repositories: Choose specific repositories (recommended)
4. Complete the installation
5. Important: After installation, note down the Installation ID from the URL
   • The URL will look like: https://github.com/settings/installations/12345678
   • The Installation ID in this example is 12345678

​

Step 4: Configure Kubernetes Secrets

# Encode the private key
ENCODED_KEY=$(cat /path/to/your/github-app-private-key.pem | base64 -w 0)

# Create the Kubernetes secret
kubectl create secret generic relvy-github-secret \
  --from-literal=private_key="$ENCODED_KEY" \
  --from-literal=client_id="your-github-app-client-id"

• /path/to/your/github-app-private-key.pem with the actual path to your downloaded private key
• your-github-app-client-id with your GitHub App’s Client ID

​

Step 5: Update Relvy Deployment

# Update the Helm repository
helm repo update

# Upgrade Relvy with the new configuration
helm upgrade relvy relvy/relvy --version=0.3.9 -f my-values.yaml

​

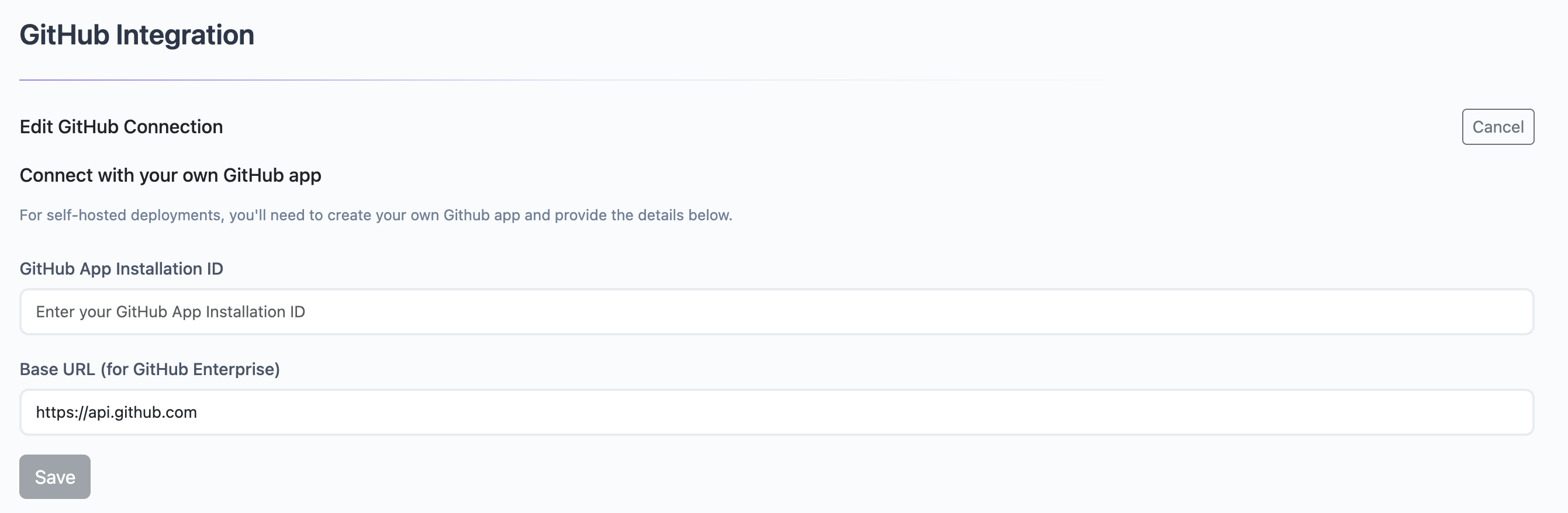

Step 6: Configure GitHub in Relvy

1. Log in to your Relvy instance
2. Navigate to the GitHub section under your Organization settings
3. Enter the following information:
   • Installation ID: The Installation ID you noted in Step 3
   • Base URL: Leave as api.github.com (or enter your GitHub Enterprise URL if different)
4. Click Save

​

Step 7: Test the Connection

1. Click the Test button to verify the connection
2. You should see a success message indicating Relvy can communicate with GitHub
3. If the test fails, verify your Installation ID and ensure the Kubernetes secret is correctly configured

​

Configuring Repositories

1. Navigate to Settings > Data Sources in your Relvy workspace
2. Locate the “Configure Code Repositories” section
3. Click Add Repository
4. Select a repository from your authorized list
5. Verify the Default Branch (typically main or master)
6. Click Save
7. Repeat for all repositories relevant to your team’s incident debugging

​

Security Considerations

​

Data Privacy

• All code analysis happens within your infrastructure
• No code leaves your environment
• You control all GitHub App credentials
• Code is never used to train AI models

​

Access Control

• Only repositories you explicitly authorize are accessible
• Read-only permissions ensure code cannot be modified
• You can revoke access at any time by uninstalling the GitHub App

​

Revoking Access

1. Go to GitHub Settings > Applications > Installed GitHub Apps
2. Find your custom Relvy app
3. Click Uninstall to remove the app
4. Remove the Kubernetes secret: kubectl delete secret relvy-github-secret --namespace=relvy

​

Next Steps

• Configure repositories in Settings > Data Sources
• Learn about GitHub integration capabilities
• Start investigating incidents with code-aware analysis
